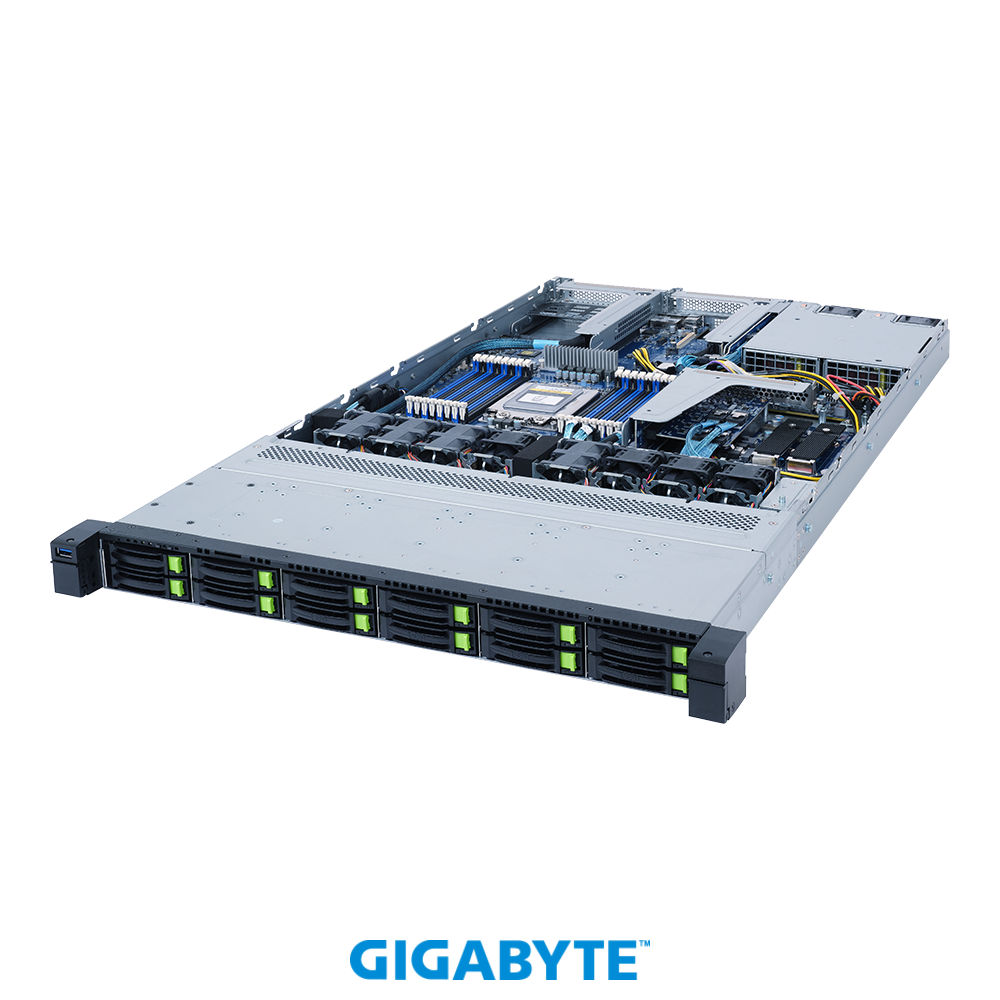

R162-ZA2

The ideal Proxmox server for cost-effective CEPH hyperconverged infrastructures

This server is readily available at Dynfi

  • Compact 1U form factor, ideal for high-density environments or rack-constrained setups, without compromising performance.
  • Fully compatible with Proxmox VE, validated in numerous production infrastructures for stable, high-performance, and easy-to-manage virtualization.
  • Up to 2TB of DDR4 ECC memory across 8 channels, offering exceptional RAM capacity for demanding virtualized workloads.
  • AMD EPYC™ 7003 Series processors, known for high energy efficiency, high core counts, and unbeatable performance-to-price ratio.
  • Up to 12 front-access Gen4 NVMe hot-swap bays, delivering ultra-fast storage performance, ideal for Ceph pools or high-performance VM volumes.
  • Dual M.2 PCIe (Gen4 and Gen3) support, perfect for hosting mirrored Proxmox systems on ZFS or for fast cache usage.
  • OCP 3.0 and 2.0 mezzanine support, enabling flexible networking options (10/25/40/100GbE), compatible with SDN, VXLAN, or Proxmox clustering scenarios.
  • Integrated BMC/Redfish IPMI management for reliable remote administration, compatible with orchestration tools like Ansible.
  • Ideal for Proxmox use cases: enterprise virtualization, Ceph HCI clusters, test labs, sovereign cloud hosting, or edge datacenters.

AMD EPYC™ 7003 Series Processors

GIGABYTE servers equipped with AMD EPYC 7003 series processors offer the highest possible I/O throughput, enabling fast communication between CPU and accelerator in HPC and data analytics environments.

Notable new features of the EPYC 9004 series:

  • Up to 64 cores
  • 8-channel DDR4-3200
  • Up to 4TB memory capacity
  • 128 PCIe 4.0 lanes
  • 2-way SMT and Turbo Boost
  • 4, 6, 8-channel memory interleaving
  • Memory and fabric clock speed synchronization
  • Secure memory encryption
  • Secure encrypted virtualization

Dimensions

1U 438 x 43.5 x 780

Motherboard

MZA2-CE0 Rev. 3.0

CPU

AMD EPYC™ 7003 Series Single processor, 7nm technology Up to 64-core, 128 threads per processor TDP up to 225W, cTDP up to 240W

Socket

Socket SP3 1 x LGA 4094

Chipset

System on Chip

Memory

16 DIMM slots DDR4 memory supported 8-Channel memory per processor RDIMM/LRDIMM: Up to 3200/2933 MT/s

LAN

2 x 1Gb/s Intel® I350-AM2 1 x 10/100/1000 management LAN

Video

Integrated 2D graphics via Aspeed® AST2500 1 x VGA port

Audio

×

Storage

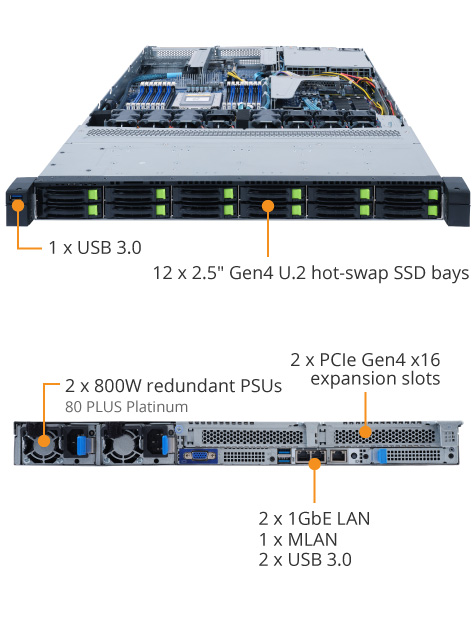

• Front hot-swap bays: 12 x 2.5” Gen4 NVMe hot-swappable drives

• Internal M.2 slot: 1 x M.2 (2280/22110), PCIe Gen4 x4

• Internal M.2 slot (CMTP063): 2 x M.2 (2280/22110), PCIe Gen3 x4

SAS

N/A

RAID

N/A

Peripheral drives

×

Expansion slots

Riser Card CRS1221 x 2: • 1 x FHHL x16 (Gen4 x16) • 1 x FHHL x16 (Gen4 x8 or x16), shared with OCP 2.0 slot [1]

Internal Riser Card CRS101H: • 1 x FHHL x16 (Gen4 x16), occupied for NVMe

1 x OCP NIC 3.0 (Gen4 x16) • Supports NCSI function

1 x OCP 2.0 mezzanine card (Gen3 x8 or x0), shared with CRS1221 • Supports NCSI function

Internal I/O

Front I/O

1 x USB 3.0 port (Type-A) 1 x Power button with LED 1 x ID button with LED 1 x NMI button (non-maskable interrupt) 1 x Reset button 2 x LAN activity LEDs 1 x Storage activity LED 1 x System status LED

Rear I/O

2 x USB 3.0 ports (Type A) 1 x Power button with LED 2 x RJ45 ports 1 x MLAN port

Backplane I/O

Speed and bandwidth: PCIe Gen4 x4

TPM

1 x TPM header with LPC interface Optional TPM2.0 kit: CTM010

Power supply

2 x 800W 80 PLUS Platinum redundant PSUs

AC Input:

  • 100-240V~/ 10-4A, 50-60Hz

DC Input:

  • 240Vdc/ 4.5A

DC Output:

  • Max 800W +12V/ 66A +12Vsb/ 2.5A

System management

Aspeed® AST2500 management controller GIGABYTE management console web interface (AMI MegaRAC SP-X)

Dashboard Java-based Serial over LAN HTML5 KVM Sensor monitoring (voltage, fan speed, temperature, CPU status, etc.) Sensor reading history FRU information SEL Log with linear/circular storage policy Hardware inventory Fan profile System firewall Power consumption Power control LDAP / AD / RADIUS support Backup and restore configuration Remote BIOS/BMC/CPLD update Event log filtering User management Media redirection settings PAM control settings SSL settings SMTP settings

OS compatibility

Proxmox Virtual Environment v.8.x Proxmox Backup Server v.2.x

Red Hat Enterprise Linux 8.3 or later Red Hat Enterprise Linux 9.0 or later

SUSE Linux Enterprise Server 12 SP5 or later SUSE Linux Enterprise Server 15 SP2 or later

Ubuntu 18.04.5 LTS or later Ubuntu 20.04 LTS or later Ubuntu 22.04 LTS or later

VMware ESXi 6.7 Update3 P03 or later VMware ESXi 7.0 Update1 or later VMware ESXi 8.0 or later

Windows Server 2016 (X2APIC/256T not supported) Windows Server 2019 Windows Server 2022

System fans

4 x 40x40x28mm (25,000rpm) 4 x 40x40x56mm (29,700rpm)

Operating properties

Operating temperature: 10°C to 35°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing)

Packaging dimensions

1038 x 588 x 223 mm

Packaging content

1 x R162-ZA2 server 1 x CPU heat sink 1 x 2-rail easy rack mounting kit

Part numbers
