R183-Z95

For high-end Proxmox-VE projects

Without compromising on quality and efficiency, here you opt for a very high-end server with two sockets for exceptional performance for your virtualized applications. It is the guarantee to opt for a server that has the optimal performance for a CEPH cluster with unmatched performance.

Powering the Next Generation of Server Architecture and Energy Efficiency

The path to AMD’s 5nm ‘Zen 4’ architecture was paved with many successful generations of EPYC innovations and chiplet designs, and AMD EPYC 9004 Series processors continue this progression. Adding a host of new features to target a wide range of workloads, the new family of EPYC processors will deliver even better CPU performance and performance per watt, and do so on a platform with 2x the throughput of PCIe 4.0 lanes that also has support for 50% more memory channels. For this new platform, GIGABYTE has products ready to get the most out of EPYC-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.

Dimensions

1U 438 x 43.5 x 815

Motherboard

MZ93-FS1

CPU

AMD EPYC™ 9005 / 9004 Series Dual processors, 5nm technology Up to 96-core, 192 threads per processor cTDP up to 300W

Supports CPU 400W, OCP 3.0 ≦21W at ambient 30°C

Socket

Socket SP5 2 x LGA 6096

Chipset

System on Chip

Memory

24 x DDR5 DIMM slots DDR5 memory supported only 12-Channel memory architecture per processor RDIMM modules up to 128GB supported 3DS RDIMM modules up to 256GB supported Memory speed: Up to 4800 MHz

LAN

2 x 1GbE Intel® I350-AM2 Supported NCSI function 1 x 10/100/1000 management LAN

Video

Integrated in Aspeed® AST2600 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp, DDR4 SDRAM

Audio

×

Storage

8 x 2.5" Gen5 NVMe/SATA + 6 x EDSFF E1.S 9.5mm

SAS

Depends on SAS Add-on card

RAID

×

Peripheral drives

×

Expansion slots

2 x PCIe x16 slots (Gen5 x16) (1 x from CPU_0 and 1 x from CPU_1)

2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth (1 x from CPU_0 and 1 x from CPU_1) Supported NCSI function

1 x M.2 slot:

  • M-key
  • PCIe Gen3 x4 from CPU_0
  • Supports 2280/22110 cards

1 x M.2 slot:

  • M-key
  • PCIe Gen3 x4 from CPU_1
  • Supports 2280/22110 cards

1 x M.2 slot:

  • M-key
  • PCIe Gen3 x2 from CPU_1
  • Supports 2280/22110 cards

Internal I/O

3 x M.2 slots 1 x TPM header 2 x OCP 3.0 mezzanine slots

Front I/O

1 x USB 3.2 Gen1 1 x Power button with LED 1 x ID button with LED 1 x Reset button 2 x LAN activity LEDs 1 x HDD activity LED 1 x System status LED

Rear I/O

2 x USB 3.2 Gen1 1 x Mini-DP 2 x RJ45 1 x MLAN 1 x ID button with LED

Backplane I/O

Backplane P/N: TBD-00 Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS4 24Gb/s or EDSFF 32Gb/s

TPM

1 x TPM header with SPI interface Optional TPM2.0 kit: CTM010

Power supply

Dual 1600W (240V) 80 PLUS Platinum redundant power supply

AC Input:

  • 100-120V~/ 12A, 50-60Hz
  • 200-240V~/ 10A, 50-60Hz

DC Input:

  • 240Vdc/ 10A

DC Output:

  • Max 1000W/ 100-120V~
  • 12V/ 81.5A
  • 12Vsb/ 2.5A
  • Max 1600W/ 200-240V~ or 240Vdc Input
  • 12V/ 133A
  • 12Vsb/ 2.5A

System management

Aspeed® AST2600 management controller GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS compatibility

Windows Server 2016 ( X2APIC/256T not supported) Windows Server 2019

Red Hat Enterprise Linux 7.6 ( x64) or later Red Hat Enterprise Linux 8.0 ( x64) or later

SUSE Linux Enterprise Server 12 SP4 ( x64) or later SUSE Linux Enterprise Server 15 SP1 ( x64) or later

Ubuntu 16.04.6 LTS (x64) or later Ubuntu 18.04.3 LTS (x64) or later Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.5 EP15 or later VMware ESXi 6.7 Update3 or later VMware ESXi 7.0 or later

Citrix Hypervisor 8.1.0 or later

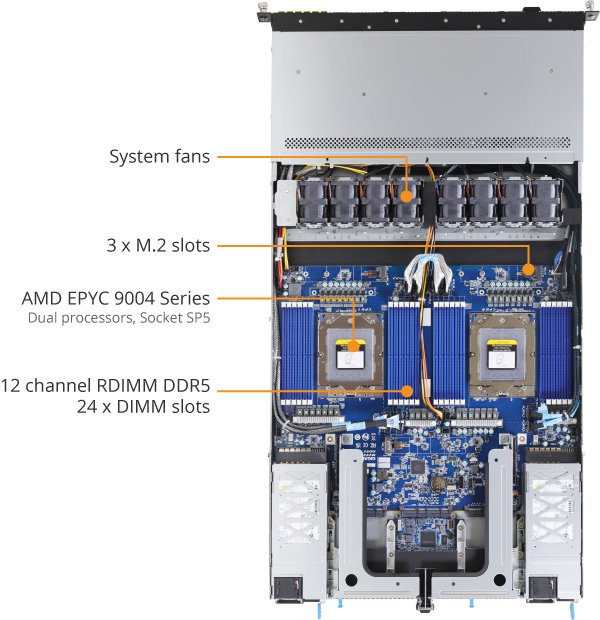

System fans

8 x 40x40x56mm (32,000rpm)

Operating properties

Operating temperature: 10°C to 35°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing)

Packaging dimensions

1045 x 595 x 249 mm

Packaging content

1 x R183-Z95 2 x CPU heatsinks 1 x Rail kit
