Dimensions
4U
482.6 x 177 x 625 mm
CPU
AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors
Single processor, 7nm technology
Up to 64 cores, 128 threads
cTDP up to 180W
Socket
1 x LGA 4094
Socket SP3
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200/2933 MT/s
LAN
Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2500
Storage
Front side:
24 x 3.5"/2.5" SATA/SAS hot-swappable bays

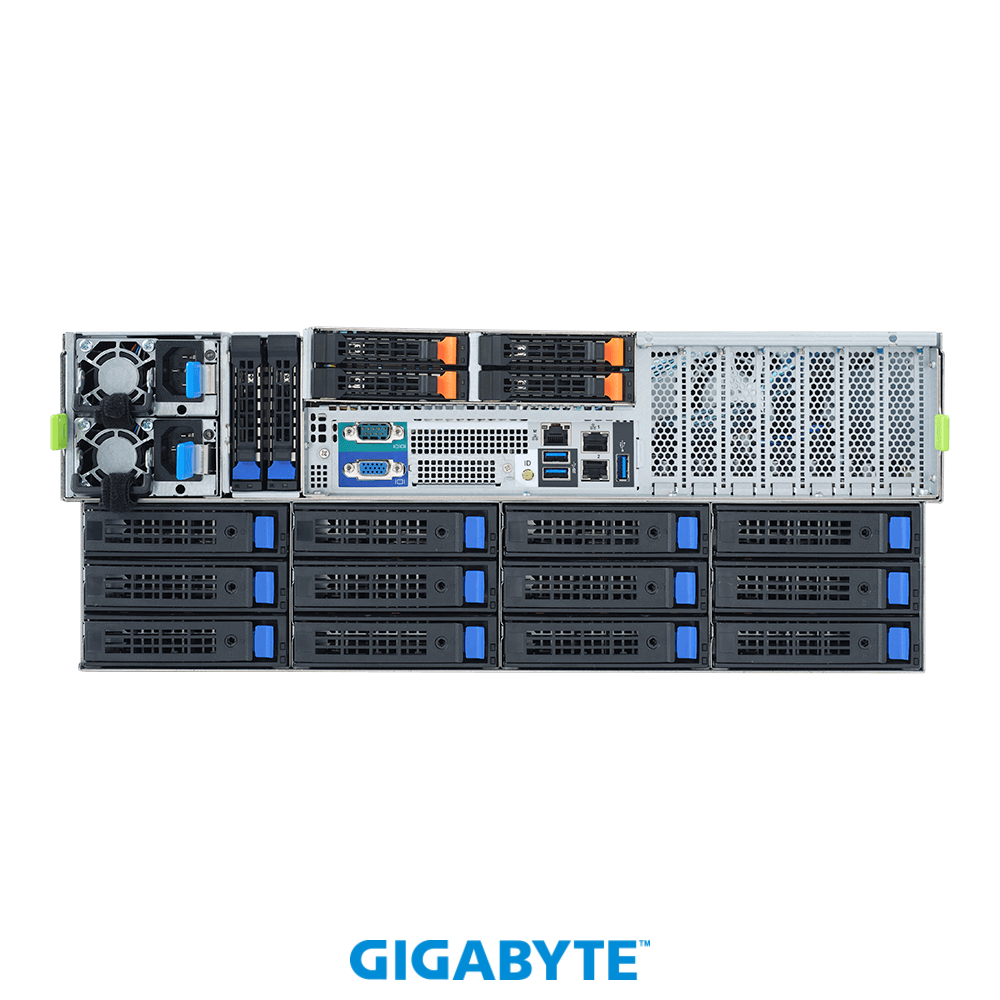

Rear side:
12 x 3.5"/2.5" SATA/SAS hot-swappable bays
4 x 2.5" NVMe/SATA hot-swappable bays
2 x 2.5" SATA hot-swappable bays
1 x Broadcom SAS35x48 expander
Bandwidth: SATA 6Gb/s or SAS 12Gb/s
Default configuration supports:
4 x NVMe/SATA/SAS and 2 x SATA/SAS devices available on the rear side
SAS
Supported via SAS add-in cards
RAID
Depends on SAS add-in cards
Expansion slots
Slot_6: PCIe x16 (Gen4 x16) low-profile slot
Slot_5: PCIe x16 (Gen4 x8) low-profile slot
Slot_4: PCIe x16 (Gen4 x16) low-profile slot
Slot_3: PCIe x16 (Gen4 x16) low-profile slot
Slot_2: PCIe x8 (Gen3 x0 or x8) low-profile slot
Slot_1: PCIe x16 (Gen3 x16 or x8) low-profile slot, shared with slot_2
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4)
Supports NCSI function
2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Supports 2242/2260/2280 cards
Internal I/O
1 x TPM header
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x System status LED
Rear I/O
3 x USB 3.0
1 x VGA
1 x COM_1
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane I/O
Speed and bandwidth:
Front side - CBPD4O0: SATA 6Gb/s or SAS 12Gb/s
Rear side - CBPD0C0: SATA 6Gb/s or SAS 12Gb/s
Rear side - CBP2021: SATA 6Gb/s
Rear side - COBPU43: PCIe Gen3 x4 or SATA 6Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
Power supply
1+1 1200W 80 PLUS Platinum redundant power supplies (-A00)
AC Input:
- 100-127V~/ 12.47A, 47-63Hz
- 200-240V~/ 7.08A, 47-63Hz
DC Input: (Only for China)
DC Output:
- Max 1000W/ 100-127V~
+12V/ 82A
+12Vsb/ 2A
- Max 1200W/ 200-240V~ or 240Vdc Input
+12V/ 98A
+12Vsb/ 2A
1+1 1300W redundant 80 PLUS Platinum power supplies (-A01)
AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Input: (Only for China)
DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12V/ 105.4A
+12Vsb/ 3A
System management
Aspeed® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface
Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage/Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
OS compatibility
Proxmox Backup Server v.2.x.
Citrix Hypervisor 8.2.0 or later
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
System fans
8 x 80x80x38mm (16,300rpm)
Operating properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging dimensions
Net Weight: 30.18 kg
Gross Weight: 53.7 kg
843 x 610 x 290 mm
Packaging content
1 x S452-Z30
1 x CPU heatsink
1 x 3-Section Rail kit
